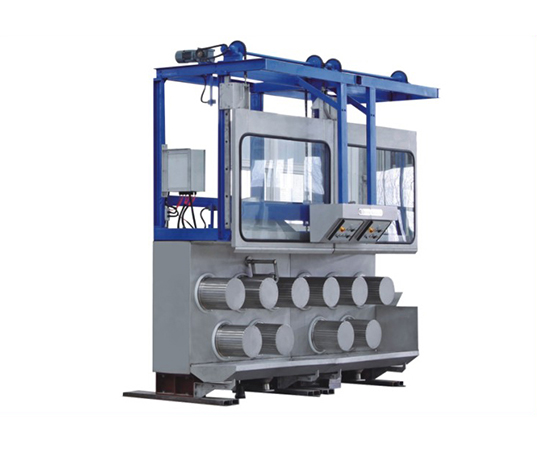

DQS series stretching machine is stretching the fiber tow that coming from
the spinning machine in certain draft ratio, meet the requirements of
the production process.
Equipment structure:
1.Stretching roller: Roller body is made by 904L,the surface with a longitudinal groove.
2.Driving: Each stretch roller is driven and controlled by a single frequency conversion motor.
3.Frame:Steel-welded frame, surface covered by 2mm-thick 904L plate.
4.Spray device and collecting tank:Spray branch pipe with the roller body in parallel, add the water to the drafting roller surface. External adopts flange connection (take lenzing spray form and the liquid receiving tank exhaust form)
5. Suction hood: Made by 316L stainless steel, eliminate the waste gas produced by tow.
6. Sealing window:The window frame is made by 316L, glass uses toughened glass, motor drive; guaranteed the quality of sealing and ensure no leak of gas.
Technical Parameters:
Type | single side, either right or left hand |
Stretching ability | ≥100000000 denier |
General speed | 55 m/min（50Hz） |
Install capacity | 148.5kw/h |
Stretching roller(Number, specification, motor power) | can be customized depending on clients requirements |
Gear motor brand | SEW or NORD |
Compressed air pressure | 0.6MPa |
Dimension(L×W×H) | （5274×1960×4700）mm |
Weight | Approx 20T |
